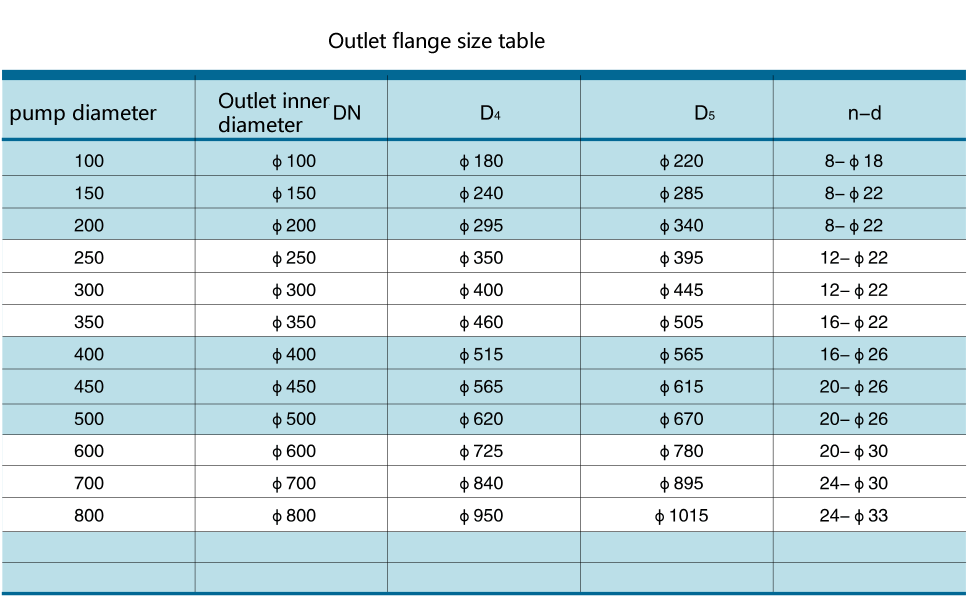

Dimension Diagram of Outlet Flange of Vertical Long Shaft Pump

Dimensional drawings of outlet flange of vertical long-axis pump: HLB, HLBK, HLKT, HLBS, HLKS and other long-axis pumps, vertical long-axis pump, long-axis oblique-flow pump, vertical oblique-flow pump, outlet flange size drawings, for reference only, subject to physical object!
